Construction began on the three new spans in 2009, and was completed in fall 2013. See the project web site for information on the reconfiguration plans on the east side of the river.
11th Street Bridges

This Anacostia River crossing is made up of two spans, and is undergoing a four-year reconstruction. The up-river spans, which opened by early 2012, carry "freeway" traffic in both directions and add new ramps to and from DC-295, while the down-river span that opened partially in May, 2012 and fully in Sept. 2013 has two-way "local" traffic to and from downtown Anacostia. Light-rail can also be accommodated on the local span. A second phase with additional movements is expected to be completed by late 2015.

Progress Photo Galleries:
5/26/13, 5/26/13 Pt 2, 1/27/13, 9/14/12, 5/19/12, 1/8/12, 10/10/11, 10/7/11
AWI 11th Street Bridge Project Page | NCPC Info on Design (2/11)
DDOT Slides (11/10) | June 2009 Schematic | DDOT Page | News Items & Links

            Info and Photos            News Items

The new 11th Street Bridges, with the I-695/freeway bridge at far left and the Officer Kevin Welch 11th Street Local Bridge at right. The freeway bridge opened in late 2011/early 2012, and the local bridge was completed in Sept. 2013. (10/20/13)

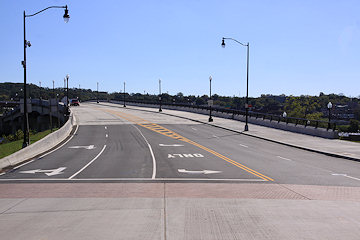

The view from the new 11th Street Local bridge to its northern end at O Street SE, with two-way traffic along 11th now flowing. (10/20/13)
Using a "slider" to help grasp how much the intersection at 11th and O streets has changed. The "before" photo (left), from 2011, shows the embankment of the old outbound 11th Street Bridge dominating and the old inbound bridge visible at far left. The "after" photo (right), from Oct. 2013 , displays the vastly different vista, with the new freeway bridge at left and the local bridge at center, and the cleaned up Anacostia Riverwalk Trail approach at far right.

Arriving at the Anacostia River, at a new concrete landing just completed. (This spot used to look a bit different.) Jutting out from the new 11th Street Local Bridge onto the piers from the old bridge are two pedestrian overlooks. (5/26/13)

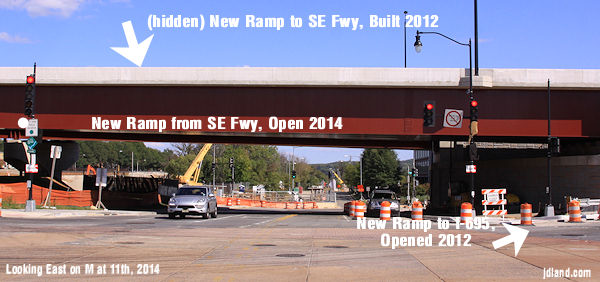

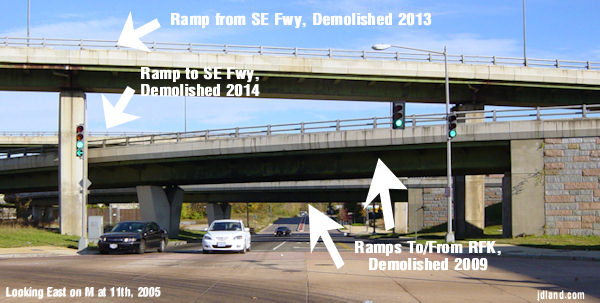

Two annotated photos of the view at 11th and M, looking east, to try to illustrate the considerable changes along 11th Street during this project. See the full progression. (10/20/13)

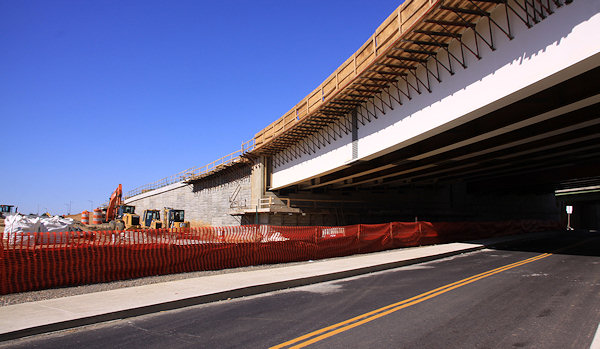

Standing on 11th Street SE, under the two new flyovers built to move traffic between the bridges and the Southeast Freeway. At far left is the one flyover remaining from the old configuration, bringing traffic inbound from the freeway bridge to 8th Street, SE. But its days are numbered. (10/20/13)

Another view at 11th Street, showing construction continuing on the new flyover that will take traffic from the Southeast Freeway to the I-695 freeway bridge. At left is where a new ramp from the freeway will deposit drivers at a signalized intersection at 11th Street, as part of the new Southeast Boulevard. (10/20/13)

Late in 2012, a new ramp opened from 11th Street SE to the westbound freeway, just north of the new flyover. The signage doesn't necessarily leap out at drivers, but those in the know from the 11th Street area and points east now can get on the freeway here rather than traveling down I Street for 8 blocks to the 3rd Street ramp. (1/6/13)

An overview of the Phase I plans for the new 11th Street Bridges, showing how the three new spans and approaches were designed, inside the footprint of the two existing spans. The southern/down-river span will be a "local street that happens to cross a river," connecting Near Southeast directly with Anacostia. The two northern spans will be all freeway traffic, and include new ramps to and from I-295 to allow for access to northbound 295 and from southbound 295 that hasn't existed before. The $300 million project was mostly completed by fall 2013. See also this Jan. 2012 YouTube Video explaining the phases of construction. (12/09)
The second phase of the project received the green light in spring 2012, bringing a series of additional movements to the 11th Street area, as well as new "Southeast Boulevard," replacing the sunken freeway to and from Barney Circle with a road that will be accessed from 11th Street. (6/12)

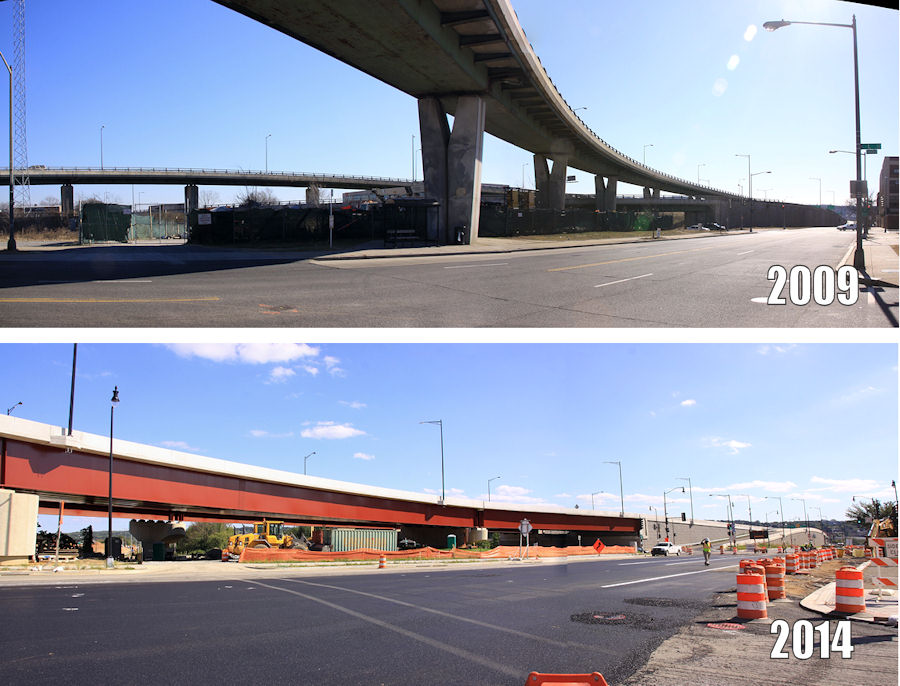

The two flyovers connecting the Southeast Freeway with the original 11th Street Bridges, as seen looking east across 11th at L Street, in Jan. 2009. (1/25/09)

The same location, with the old ramp at rear hidden by the two new flyovers replacing the connections to/from the SE Freeway. Note the lower and more combined footprint.  (3/09/14) Click to see all available photos of this location.

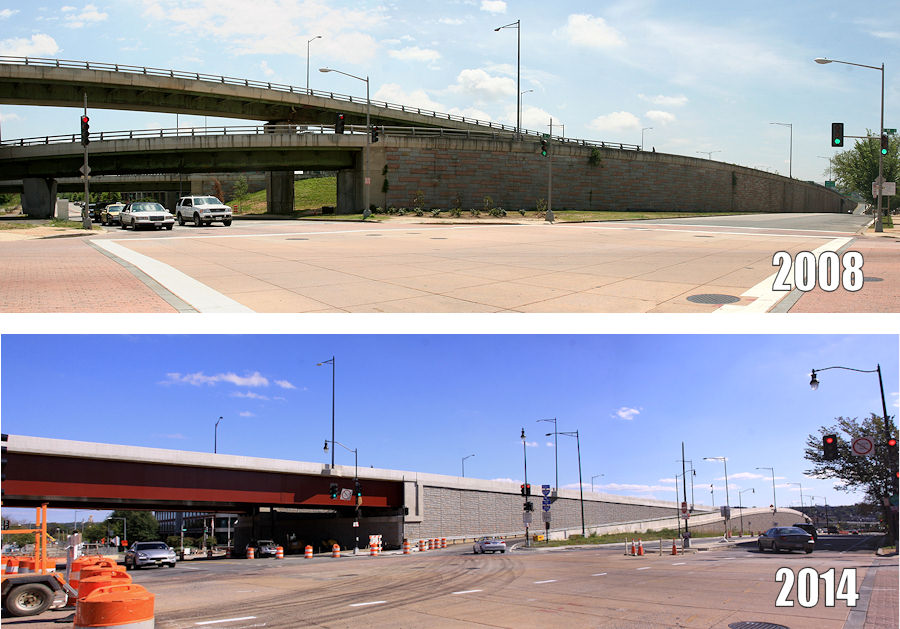

The southeast corner of 11th and M streets, which was dominated by the retaining wall of the ramp that headed toward the outbound bridge lanes from RFK. (06/08)

The same location, after the new ramp opened in May, 2012 from M Street just east of 11th to outbound I-695 (the 11th Street "freeway bridge"). (3/09/14) Click to see all available photos of this location.

Looking south from O Street, just east of the outbound 11th Street Bridge, in November 2005. This was one of the two brick storage buildings that stood by the river until construction began on the new bridges. (11/14/05)

The same location (honest!), with the new 11th Street Local bridge completed. (10/20/13)

Standing under the old outbound bridge, at the entrance to the Navy Yard Riverwalk, in November 2005. (11/13/05)

The same location, looking slightly different with the plaza area at the waterfront now completed. (See more before-and-afters from 11th and O to see the progress on the demolition of the old bridge and its on-ramp.) (5/26/13) Click to see all available photos of this location.

Turning to look to the north, along the path of the Anacostia Riverwalk just east of the Navy Yard, in November 2005. (2/26/12)

The same location, looking slightly different, and showing that approach to the riverwalk will be a bit less Escape-From-New-York-ish.  (5/26/13) Click to see all available photos of this location.

Looking north on 11th from N in 2011. The street at the time was one way, with the embankment at right leftover from the old ramp from RFK to the outbound bridge, and the traffic in the left lane preparing to enter the ramp to the old outbound bridge. (4/30/11)

The same location, with the embankment for the old RFK ramp demolished and the new ramp open up from M Street to the outbound freeway bridge. You can also see how the street is wider. (See more before-and-afters from 11th and N to see the progress on the embankment demolition and new ramp.) (3/09/14) Click to see all available photos of this location.

The southwest corner of 12th and M, where traffic exiting the old bridges arrived at M Street. (08/08)

The same location, with the new exit ramp from the inbound freeway bridge open, on the right side of the photo. (1/27/13) Click to see all available photos of this location.

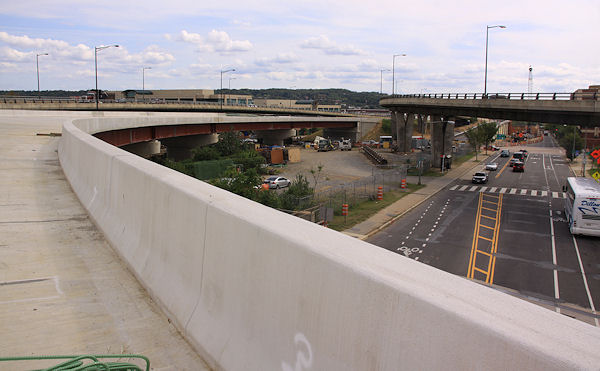

Standing on the almost-completed ramp that will eventually carry inbound I-695 traffic to the westbound SE/SW Freeway, but will be used temporarily starting in 2013 to handle outbound freeway traffic, while the old two-lane flyover at right is demolished and a new three-lane flyover is built in the gap seen here. More September 2012 images are in this gallery. (9/14/12)

Getting a little closer to the 11th and L flyover reveals this gem,
from a decidedly different era. (1/25/09)

This staircase used to lead to the old inbound ramp to 12th Street, but now.... (1/27/13)

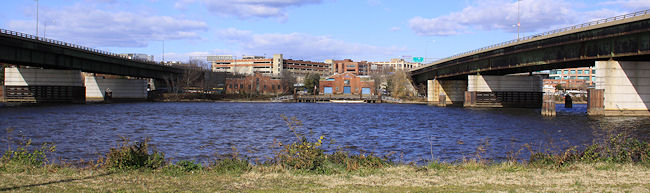

The two spans of the old 11th Street Bridges, as seen from Anacostia Park, looking west toward Near Southeast, about a year before construction began on the new bridges. The buildings in the center were home to the Anacostia Community Boathouse Association (see more about this area before the new bridges were built). (12/08)

A wider and higher view also looking west, in October 2011. On the left is the new 11th Street Local bridge, which moves two-way traffic between old town Anacostia and 11th Street SE next to the Navy Yard. To the right are the two new freeway bridges, inbound and outbound, which will connect the Southeast Freeway to DC 295, which opened in late 2011 and early 2012. In the middle is the new ramp that will take traffic from the outbound bridge toward northbound DC 295, a connection that doesn't exist with the current bridge configuration. It opened in Dec. 2012. See also this panoramic image of the workzone, and the western shore of the Anacostia. More October 2011 images are in this gallery. (10/7/11)

The western side of the bridges footprint, at the old Anacostia Boathouse docks. (See more photos of how the boathouse area between the bridges looked before construction started.) (8/23/08)

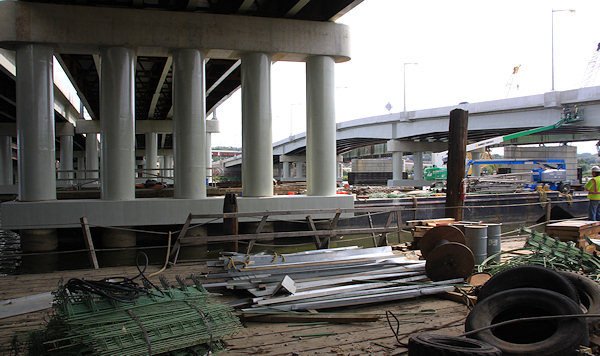

The same location (see the wooden pier?), under construction. More September 2012 images are in this gallery. (9/14/12)

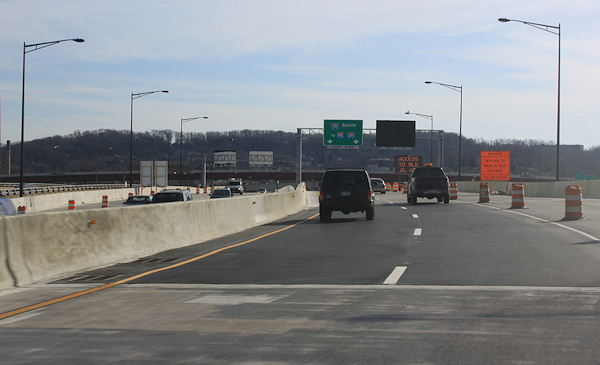

And the same view from the top side. The two 11th Street Bridge freeway spans opened in December 2011 and January 2012, with ramps connecting to and from DC-295 also opening in 2012. This is a not-very-exciting photo from my first trip across the outbound bridge, the day after it opened. (You can also see this short montage of photos I took while crossing.) More January 2012 images are in this gallery. (1/8/12)

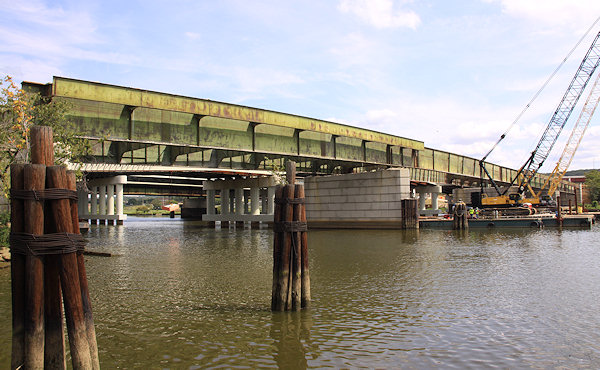

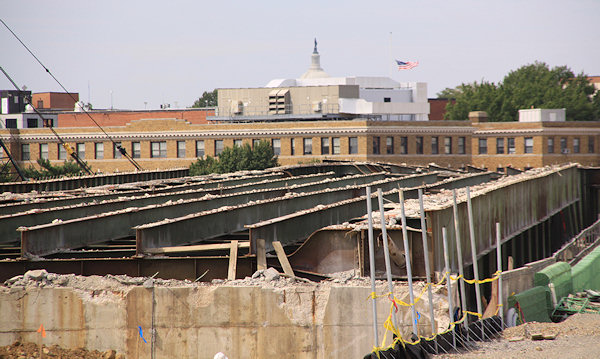

My final photo of the old outbound bridge, as seen from the Navy Yard Riverwalk, as its girders were being removed. (9/14/12)

And a last top-side view of the old outbound bridge. (9/14/12)
